Articulated Boom Lift-GTZZ18&18Z

Model GTZZ18
  • DETAILS
  • AVAILABLE SIZES

1. It is a self-propelled articulated boom lift.
2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 26m.
5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.



MODEL   GTZZ18   GTZZ18Z
MEASUREMENTS                                                 Metric /US
Working height maximum * 20.12m 66ft 16.07m 66ft2in
Platform height maximum 18.42m 50ft5in 18.47m 60ft7in
Below ground reach 7.16m 23ft6in 7.37m 24ft2in

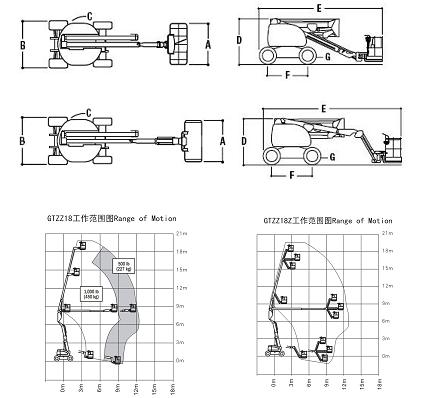

A Platform length-8ft model 0.91m 3ft 0.91m 3ft
B Platform width -6ft model 2.44m 96ft 2.44m 96ft
C Height-stowed 2.45m 8ft4in 2.45m 8ft4in
D Length-stowed 8.05m 26ft5in 8.83m 28ft11in
E Width 2.44m 8ft 2.44m 8ft
F Wheelbase 2.45m 8ft 2.45m 8ft
G Ground clearance-center 39m 1ft3.5in 39m 1ft3.5in



PRODUCTIVITY
Lift capacity 227kg 500lbs 227kg 500lbs
Platform rotation 180° 180°
Turntable Swing 360°continuous 360°continuous
Turntable tailswing 0 0
Travel speed -stowed 8km/h 5mph 8km/h 5mph
Travel speed -raised or extended 5.6km/h 3.5mph 5.6km/h 3.5mph
Gradeability -stowed (2WD) 30% 30%
Gradeability -stowed (4WD) 45% 45%
Turning radius - inside       3.48m 11ft5in 3.48m 11ft5in
Turning radius –outside 5.38m 17ft8in 5.38m 17ft8in
Turning radius - axle extendeded      outside
Controls 12V DC Proportional 12V DC Proportional
Solid tires 355/55 D625 355/55 D625



POWER
Power source Cummins B3.3NA-C60 4 60HP (45kw)
Perkins 400 61hp (45.5kw)

Auxiliary power unit 12V DC 12V DC
Hydraulic tank capacity 115.8L  30.6gal 115.8L  30.6gal
Fuel tank capacity 113.6L 30gal 113.6L 30gal
