Product Detail

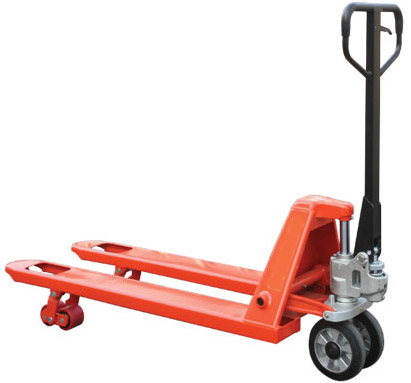

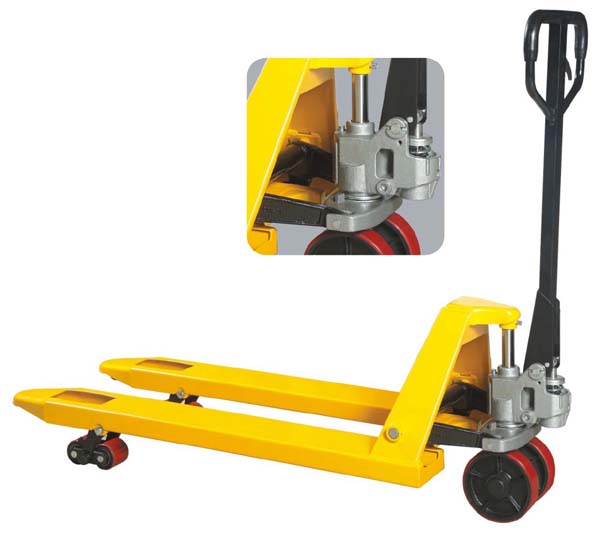

Hand pallet truck AC

Model AC20 AC25 AC30
  • DETAILS
  • AVAILABLE SIZES

Conforms to EN 1757-2

Special fork length are available 800,900,950,1000,1100,1500,2000,2500,3000mm for different capacity from 1000kg to 3500kg.

Materials and specification are subject to change without notice.

Item/Type   AC15/20 AC25 AC30
Capacity Q kg 1500/2000 2500 3000
Min.fork height h mm 85 75 85 75 85 75
Max.fork height h1 mm 200 190 200 190 200 190
Steering wheel mm Φ200x50 Φ180x50 Φ200x50 Φ180x50 Φ200x50 Φ180x50
Load roller Single mm Φ80x93 Φ74x93 Φ80x93 Φ74x93 Φ80x93 Φ74x93
Load roller Tandem mm Φ80x70 Φ74x70 Φ80x70 Φ74x70 Φ80x70 Φ74x70
Size of fork e*s mm 160x50 160x60
Width overall forks B mm 450/520/540/685
Fork length I mm 800/900/1000/1100/1150/1220



Item/Type   ACE20 ACL
Capacity Q kg 2000 2000 1500 1000
Min.fork height h mm 75/85
Max.fork height h1 mm 190/200
Steering wheel mm Φ180x50/Φ200x50
Load roller Single mm Φ74x93/Φ80x93
Load roller Tandem mm Φ74x70/Φ80x70
Size of fork e*s mm 160x50 160x60
Width overall forks B mm 838 540/685
Fork length I mm 1100/1150/1220 1500/1800/2000/2500/3000



Specially designed to lift and transport the widest variety ofloads in stores and warehouse

The ergonomic tiller safely protects the operator's hands while working

Excellent hydraulic lift unit

Strong, torsion-resistant steel construction

Load-in/lead-out rollers under the fork tips enable pallets to be entered any kind of pallet

No routine maintenance at all is needed on the hydraulics unit and bearings

Important seals made in Germany, which prolong the working time of hydraulic unit

With different options for fork width and length

With options for Nylon, Rubber wheel and PU wheels

Parking brake can be chosen as a special option

Frame paint is on customer demand

AC-TWO  Side Roller Pallet Truck

AC-Low   Low-profile optional

The low profile hand pallet truck with a low clearance has been developed for handling products like low line crates that only counterbalanced forklifts can move
