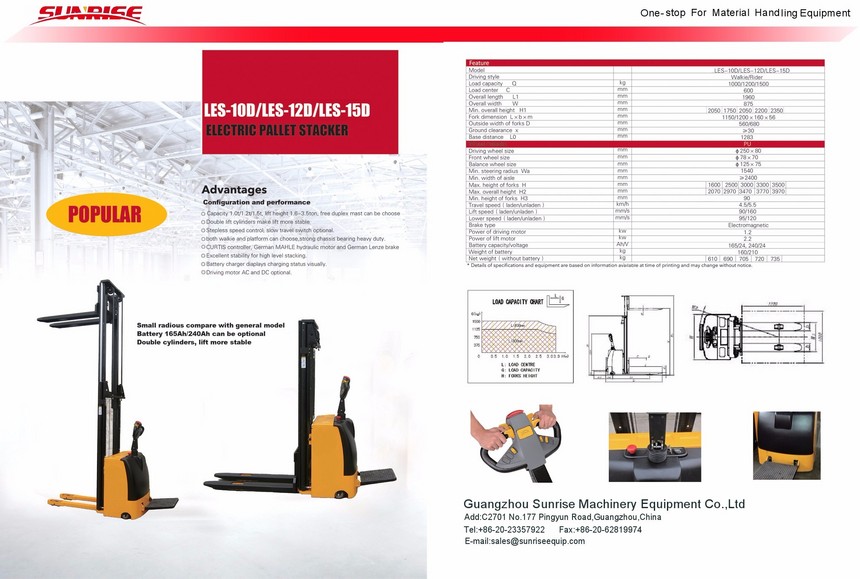

Capacity 1.0t/1.2t/1.5t, lift height 1.6-3.5ton, free duplex mast can be choose.
·Double lift cylinders make lift more stable.
·Stepless speed control, slow travel switch optional.
·both walkie and platform can choose,strong chassis bearing heavy duty.
·CURTIS controller, German MAHLE hydraulic motor and German Lenze brake.
·Excellent stability for high level stacking.
·Battery charger diaplays charging status visually.
·Driving motor AC and DC optional.
| Model |
| LES-10D/LES-12D/LES-15D |
| Driving style |
| Walkie/Rider |
| Load capacity Q | kg | 1000/1200/1500 |
| Load center C | mm | 600 |
| Overall length L1 | mm | 1960 |
| Overall width W | mm | 875 |
| Min. overall height H1 | mm | 2050 | 1750 | 2050 | 2200 | 2350 |
| Fork dimension L×b×m | mm | 1150/1200×160×56 |
| Outside width of forks D | mm | 560/680 |
| Ground clearance x | mm | ≥30 |
| Base distance L0 | mm | 1283 |
| Wheel material |
| PU |
| Driving wheel size | mm | φ250×80 |
| Front wheel size | mm | φ78×70 |
| Balance wheel size | mm | φ125×75 |
| Min. steering radius Wa | mm | 1540 |
| Min. width of aisle | mm | ≥2400 |
| Max. height of forks H | mm | 1600 | 2500 | 3000 | 3300 | 3500 |
| Max. overall height H2 | mm | 2070 | 2970 | 3470 | 3770 | 3970 |
| Min. height of forks H3 | mm | 90 |
| Travel speed（laden/unladen） | km/h | 4.5/5.5 |
| Lift speed（laden/unladen） | mm/s | 90/160 |
| Lower speed（laden/unladen） | mm/s | 95/120 |
| Brake type |
| Electromagnetic |
| Power of driving motor | kw | 1.2 |
| Power of lift motor | kw | 2.2 |
| Battery capacity/voltage | Ah/V | 165/24, 240/24 |
| Weight of battery | kg | 160/210 |
| Net weight（without battery） | kg | 610 | 690 | 705 | 720 | 735 |
