Self lift stacker

Capacity: 500kgs

Model ESL50

DETAILS

1. Steering chain auxiliary device;
2. The foot brake, more stable;
3. Sealed batteries free of maintenance. safe operation and no pollution;
4. Explosion-proof valve design, down more stable and reliable;
5. Over discharge protection, extending battery life.

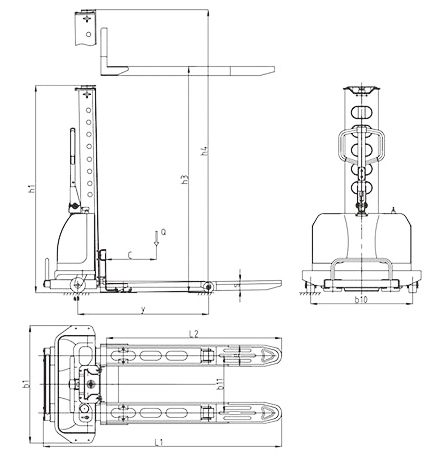

Model		ESL50/09	ESL50/10	ESL50/11	ESL50/13
Capacity	Q(Kg)	500	500	500	500
Lifting height	h3(mm)	900	1000	1100	1300
Load center	C(mm)	400	400	400	400
Type of lifting		Electric
Wheel base	y(mm)	860	860	860	860
Front wheel base	b11(mm)	380	380	380	380
Back wheel base	b10(mm)	670	670	670	670
Bearing wheel size	mm	Φ70×60	Φ70×60	Φ70×60	Φ70×60
Steering wheel size	mm	Φ100×50	Φ100×50	Φ100×50	Φ100×50
Balance wheel size	mm	Φ40×26	Φ40×26	Φ40×26	Φ40×26
Training wheel size	mm	Φ30×26	Φ30×26	Φ30×26	Φ30×26
Min.fork height	mm	90	90	90	90
Fork outside width	mm	535	535	535	535
Fork inside width	mm	225	225	225	225
Fork length	l(mm)	1150	1150	1150	1150
Single fork size	e/s(mm)	155/60	155/60	155/60	155/60
Overall length	L1(mm)	1565	1565	1600	1600
Overall width	b1(mm)	790	790	790	790
Overall height	h1(mm)	1195	1250	1400	1600
Whole height(after tape file shelf)	h4(mm)	2100	2300	2500	2900
Min.turning radius	Wa(mm)	1120	1120	1120	1120
Lifting speed(laden/unladen)	mm/s	80/110	80/110	80/110	80/110
Lowering speed(laden/unladen)	mm/s	80/80	80/80	80/80	80/80
Lift motor	Kw	12/0.8	12/0.8	12V0.8	12V0.8
Battery capacity	V/Ah	12/33	12/33	12/33	12/33
Battery weight	Kg	10	10	10	10
Net weight	Kg	175	186	197	219

ESL50 2.jpg
