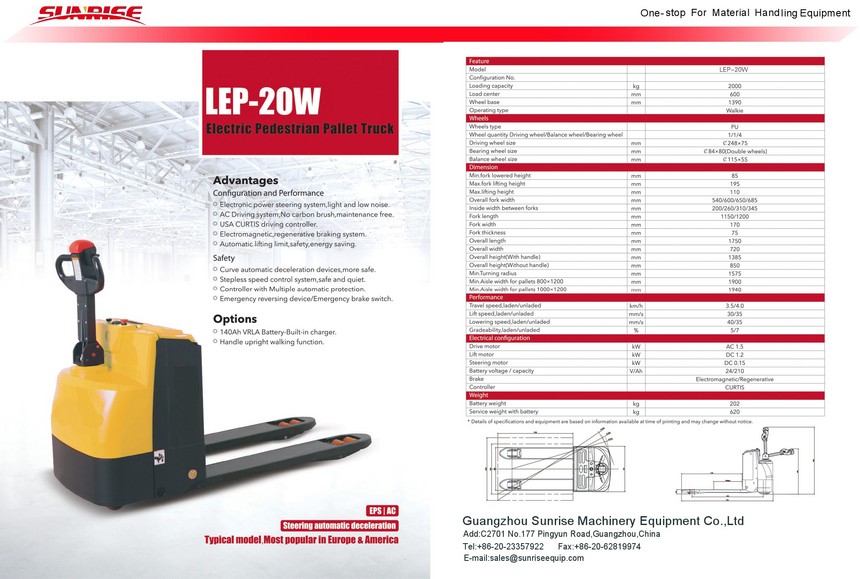

Walkie Powered Pallet Truck LEP-20W
1.Tilter head ergonomically designed for maximum operator comforable,and control buttons positioned to allow operation with either hand.
2.Balance caster wheels for added stability and maximum safety, especially at high speed .
3.Tight but friendly components lay-out , easy access to maintenance and reduce downtime.
4.Two strong side lifting cylinders with one extra central cylinder design ensure stable loading and unloading operations.
5.Assemblied battery compartment cover can be easily open and removed , to easy vertical-lifting battery change and charge , reduce downtime .
6.Durable and rigid frame and forks construction ensure the truck to handle heavy loads.
7.Entry and exit rollers ensure a fast, smooth handling operation.
| 1 | Model |
| LEP-20W |
| 2 | Configuration No. |
| AC+EPS |
| 3 | Load capacity | kg | 2000 |
| 4 | Load center | mm | 600 |
| 5 | Wheel base | mm | 1390 |
| 6 | Operating type |
| Walkie |
| Wheels |
|
|
| 7 | Wheels type |
| PU |
| 8 | Wheel quantity
Driving wheel/Balance wheel /Bearing wheel |
| 1/1/4 |
| 9 | Driving wheel size | mm | ￠248×75 |
| 10 | Balance wheel size | mm | ￠80×80
（Double wheels） |
| 11 | Bearing wheel size | mm | ￠115×55 |
| Dimension |
|
|
| 12 | Min.fork lowered height | mm | 85 |
| 13 | Max.fork lifting height | mm | 195 |
| 14 | Max.lifting height | mm | 110 |
| 15 | Overall fork width | mm | 540/600/685 |
| 16 | Fork length | mm | 1150/1200 |
| 17 | Fork width | mm | 185 |
| 18 | Fork thickness | mm | 55 |
| 19 | Overall length | mm | 1750 |
| 20 | Overall width | mm | 720 |
| 21 | Overall height(With handle) | mm | 1385 |
| 22 | Overall height(Without handle) | mm | 850 |
| 23 | Min.Turning radius | mm | 1575 |
| 24 | Min.Aisle width for pallets 800×1200 | mm | 1900 |
| 25 | Min.Aisle width for pallets 1000×1200 | mm | 1940 |
| Performance |
|
|
| 26 | Travel speed,laden/unladen | km/h | 4/4 |
| 27 | Lift speed,laden/unladen | mm/s | 56/60 |
| 28 | Lowering speed,laden/unladen | mm/s | 57/59 |
| 29 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration |
|
|
| 30 | Drive motor | KW | AC 1.5 |
| 31 | Lift motor | KW | DC 2.0 |
| 32 | Steering motor | KW | DC 0.15 |
| 33 | Battery voltage / capacity | V/Ah | 24/210 |
| 34 | Brake |
| Electromagnetic / Regenerative |
| 35 | Controller |
| CURTIS 1230 |
| Weight |
|
|
| 36 | Battery weight | kg | 190 |
| 37 | Service weight with battery | kg | 600 |
