Electric pallet truck LEP-20B

Capacity: 2000kgs

Model LEP-20B

DETAILS
Catalogue

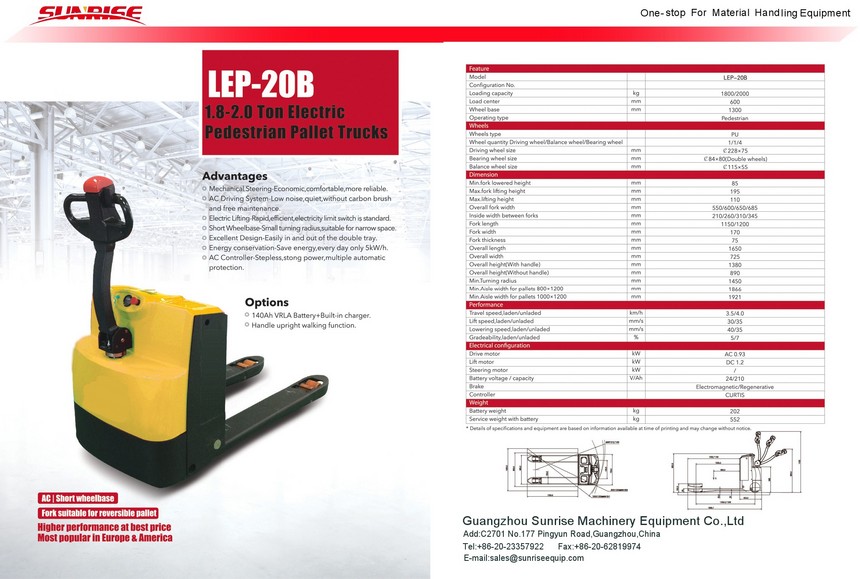

Walkie Electric Pallet Truck ELEP-20B
- Capacity:2000kg, double-side pallet can be used
- AC free maintenance motor, without carbon brush
- Small turning radius, fit for narrow space
- Electric lifting, rapid, efficient, limited switch
- Outerside charger, 24V/150AH battery
- Low voltage protection, truck will stop if voltage is lower, make truck/battery with long using life
- Emergecy stop/hour meter/Battery level indicator

1	Model		LEP-20B
2	Configuration No.		AC
3	Load capacity	kg	2000
4	Load center	mm	600
5	Wheel base	mm	1300
6	Operating type		Walkie
	Wheels
7	Wheels type		PU
8	Wheel quantity Driving wheel/Balance wheel /Bearing wheel		1/1/4
9	Driving wheel size	mm	￠228×75
10	Balance wheel size	mm	￠84×80 （Double wheels）
11	Bearing wheel size	mm	￠115×55
	Dimension
12	Min.fork lowered height	mm	85
13	Max.fork lifting height	mm	200
14	Max.lifting height	mm	115
15	Overall fork width	mm	550/600/685
16	Fork length	mm	1150/1200
17	Fork width	mm	165
18	Fork thickness	mm	55
19	Overall length	mm	1650
20	Overall width	mm	725
21	Overall height(With handle)	mm	1380
22	Overall height(Without handle)	mm	890
23	Min.Turning radius	mm	1450
24	Min.Aisle width for pallets 800×1200	mm	1866
25	Min.Aisle width for pallets 1000×1200	mm	1921
	Performance
26	Travel speed,laden/unladen	km/h	3.5/4.0
27	Lift speed,laden/unladen	mm/s	20/25
28	Lowering speed,laden/unladen	mm/s	40/30
29	Gradeability,laden/unladen	%	5/7
	Electrical configuration
30	Drive motor	KW	AC 0.93
31	Lift motor	KW	DC1.2
32	Steering motor	KW	/
33	Battery voltage / capacity	V/Ah	24/140Ah, 24/210
34	Brake		Electromagnetic / Regenerative
35	Controller		ZAPI AC0
	Weight
36	Battery weight	kg	190
37	Service weight with battery	kg	585
