Product Detail

Electric pallet truck LEP-16

Capacity
1600/1800/2000kgs
Model LEP-16/LEP-18/LEP-20A
  • DETAILS

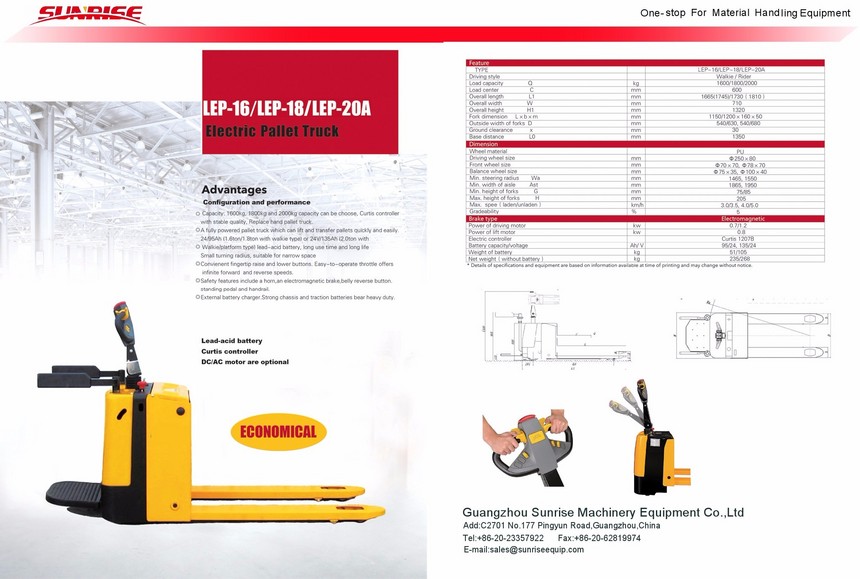

  • Catalogue



Capacity: 1600kg, 1800kg and 2000kg capacity can be choose, Curtis controller with,  stable quality, Replace hand pallet truck.

A fully powered pallet truck which can lift and transfer pallets quickly and easily.

24/95Ah (1.6ton/1.8ton with walkie type) or 24V/135Ah (2.0ton with Walkie/platform type) lead-acid battery, long use time and long life

Small turning radius, suitable for narrow space

Convienent fingertip raise and lower buttons. Easy-to-operate throttle offers infinite forward  and reverse speeds.

Safety features include a horn,an electromagnetic brake,belly reverse button.standing pedal and handrail.

External battery charger.Strong chassis and traction batteries bear heavy duty.



Model
LEP-16 / LEP-18 / LEP-20A
Driving   style
Walkie / Rider
Load   capacity                Qkg1600/1800/2000
Load   center                    Cmm600
Overall   length                L1mm1665(1745)/1730(1810)
Overall   width                W mm710
Overall   height               H1mm1320
Fork   dimension     L×b×mmm1150/1200×160×50
Outside   width of forks  Dmm540/630, 540/680
Ground   clearance           xmm30
Base   distance                L0mm1350
Wheel   material
PU
Driving   wheel sizemmΦ250×80
Front   wheel sizemm Φ70×70,   Φ78×70
Balance wheel sizemmΦ75×35, Φ100×40
Min.   steering radius        Wamm1465, 1550
Min.   width of aisle         Astmm1865, 1950
Min.   height of forks          Gmm75/85
Max.   height of forks          Hmm205
Max.  spee(laden/unladen)km/h3.0/3.5, 4.0/5.0
Gradeability%5
Brake   type
Electromagnetic
Power of   driving motorkw0.7/1.2
Power of   lift motorkw0.8
Electric   controller
Curtis 1207B
Battery   capacity/voltageAh/ V95/24, 135/24
Weight   of batterykg51/105
Net   weight(without battery)kg235/268
