Sideshifting Drum Clamps
|
Model
|
Carrying capacity
@ Load Center
（Kg@mm）
|
Installation
Level
|
Forklift
Adapter
|
arm
range
H
（mm）
|
Frame width
D
（mm）
|
Overall height
B
（mm）
|
Hook
from
C
（mm）
|
Arm high
E
（mm）
|
Weight
（Kg）
|
Vertical center of gravity
CGV
（mm）
|
Omission from
ET
（mm）
|
Level of focusCGH
（mm）
|
|
TJ14S-A1
|
1400@500
|
Ⅱ
|
2-2.5t
|
330-1550
|
1040
|
550
|
780
|
225
|
370
|
208
|
125
|
262
|
|
TJ14S-B1
|
1900@500
|
Ⅲ
|
3-4.5t
|
330-1550
|
1040
|
625
|
960
|
225
|
395
|
208
|
125
|
262
|
|
TJ19S-A1
|
1900@500
|
Ⅱ
|
2-2.5t
|
520-1750
|
1040
|
807
|
815
|
235
|
360
|
212
|
162
|
100
|
Note:
1, the actual truck / carrying capacity is a comprehensive factory obtained from the forklift.
2, Group 2 required additional forklifts need to increase oil line.
3, according to user need to use various types of 3-4.5t forklift mast.
Pressure for flow meter
|
Model
|
Pressure value（Bar）
|
Flow value（L/min）
|
|
Least
|
Maximum
|
Lateral movement
|
Clamping action
|
|
Least
|
Recommend
|
Maximum
|
Least
|
Recommend
|
Maximum
|
|
TJ**S
|
35
|
160
|
4
|
11
|
21
|
15
|
21
|
38
|

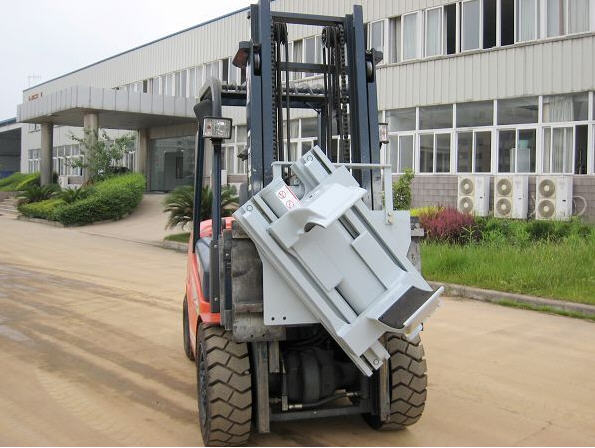

Revoling Durm Clamps
|
Model
|
Load capacity &
load center
(Kg@mm)
|
Installation
Grade
|
Forklift
Adapter
|
arm
range
H
(mm)
|
Arm
high
D
(mm)
|
Overall height
B
(mm)
|
Hook from
C
(mm)
|
Arm high
E
(mm)
|
Weight
(Kg)
|
Vertical
center of
gravity
CGV
(mm)
|
Omission
from
ET
(mm)
|
Level of focus
CGH
(mm)
|
|
TJ19R-A1
(Four barrels of
Folder)
|
1900@500
|
Ⅱ
|
2-2.5t
|
470-1700
|
1040
|
800
|
814
|
800
|
785
|
326
|
382
|
275
|
|
TJ19R-A2
(two barrels of
Folder)
|
1900@500
|
Ⅱ
|
2-2.5t
|
520-1750
|
1040
|
807
|
815
|
235
|
470
|
260
|
222
|
140
|
|
TJ19R-A3
(Four barrels of
Folder)
|
1900@500
|
Ⅱ
|
2-2.5t
|
470-1700
|
1040
|
770
|
815
|
230
|
645
|
324
|
275
|
272
|
Note:
1, the actual truck / carrying capacity is a comprehensive factory obtained from the forklift.
2, Group 2 required additional forklifts need to increase oil line.
Pressure for flow meter
|
Model
|
Pressure value（Bar）
|
Flow value（L/min）
|
|
Least
|
Maximum
|
Lateral movement
|
Clamping action
|
|
Least
|
Recommend
|
Maximum
|
Least
|
Recommend
|
Maximum
|
|
TJ**R
|
35
|
180
|
19
|
38
|
57
|
15
|
21
|
38
|
