Product Detail

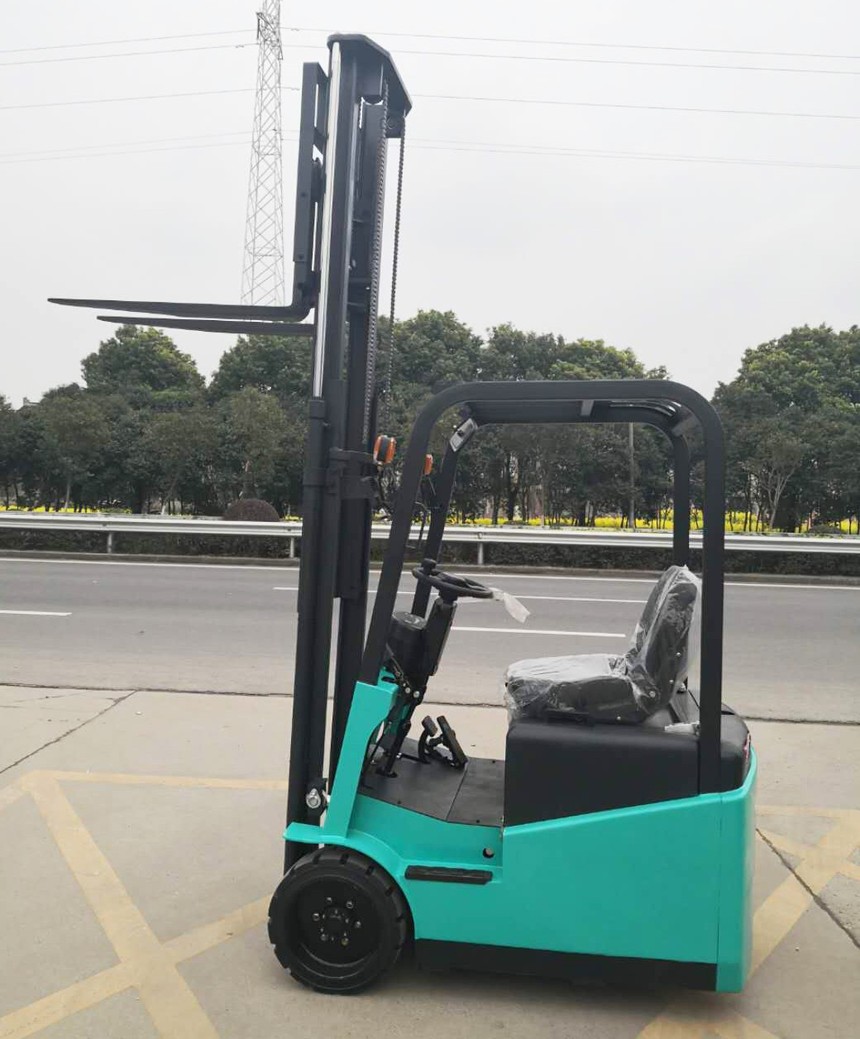

Three wheel electric forklift

Model CPD15

DETAILS

Model					CPDB10C	CPDB15C		CPDB20C		CPDB15D		CPDB15E
1	Characteristics	Power type			Battery	Battery		Battery		Battery		Battery
2		Capacity		kg	1000	1500		2000		1500		1500
3		Load center		mm	500	500		500		500		500
4		Lifting height		mm	3000	3000		3000		3000		3000
5		Fork size	LxWxH	mm	920×100×35	920×100×35		1070×100×40		1000×100×35		1000×100×35
6		Tilt	F/B		6/12	6/12		6/12		3/5		3/5
7		Min.turning radius		mm	1300	1300		2300		1560		1560
8		Min Aisle width		mm	2000	1560		2500		3300		3300
9		Min.ground clearance		mm	40	40		40		40		40
10		Overhead guard height		mm	1950	1950		2170		1950		1950
11		Height from seat to overhead		mm	970	970		1005		930		930
12	Perf	Traveling speed	Unload/loaded	km/h	11/8	11/8		12/10		5.5/4.5		5.5/4.5
13		Lifting speed	Unload/loaded	mm/s	320/260	320/260		340/280		140/100		140/100
14		Gradeability		%	14/12	14/12		15		14/12		8.0/5.0
15	Dimensions	Overall length （without fork）		mm	2600	2900		3450		3150		3150
16		Overall width		mm	1018	1018		1150		1150		1150
17		Mast extended height		mm	4000	4000		4000		3650		3650
18		Mast lowered height		mm	2020	2020		2020		2020		2020
19	Powertrain	Tire	Front		186121/8	186121/8		6.50-10		186121/8		15*4 1/2-8
20			Rear		323*100	323*100		323*100		323*100		250*80
21		Wheelbase		mm	1100	1100		1380		1630		1380
22		Tread width	Front/Rear	mm	870/160	870/160		900/145		900/145		960
23		Curb weight	None-load	kg	1610	2050		2610		1800		1800
25		Motor	Driving	KW	4	5		10		4		1.2
26			Lifting	KW	3	4		12		3		2.2
24		Battery	Voltage/Capacity		Curtis	Curtis		FJ		三一		LN
27		Controler			AC+DC	AC+DC		AC		DC		DC
28		Voltage		V	48	48		48		48		24V
29		Battery			12V/160AH*4	6V/240AH*8		2V/480AH*24		12V/140AH*4		240AH
