Electric Glass Vacuum Lifter

Capacity: 400/600/800KGS

Model WSG40/16 60/16 80/16

DETAILS
AVAILABLE SIZES

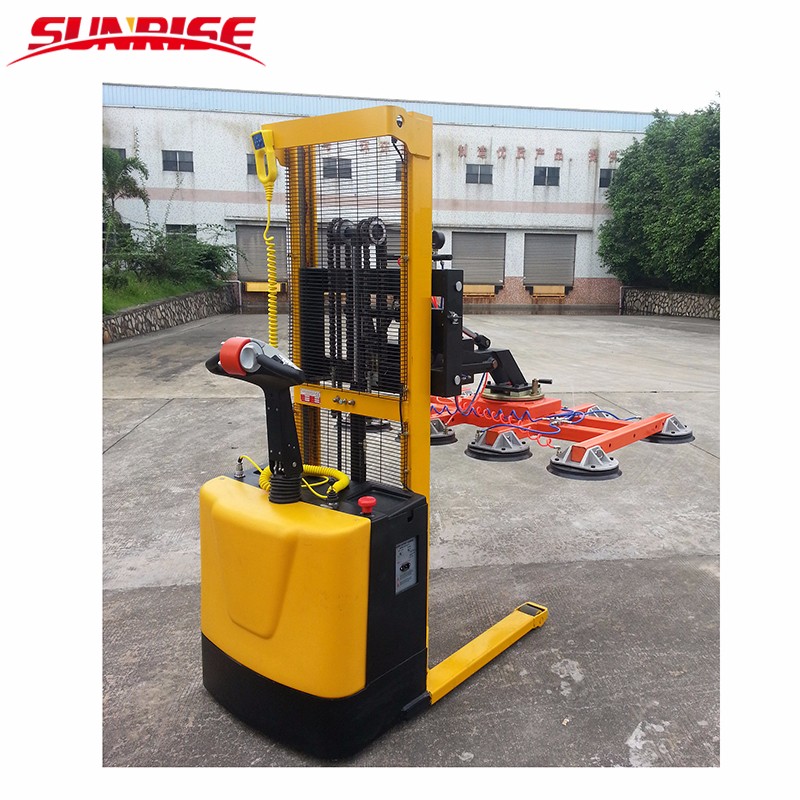

Vacuum lifter

click here for operate video: http://youtu.be/XPkevbesrrk

Description

Handling equipment Special design for Handling difference kind of heavy plate,such as steel,glass,granite,marbel and so forth, with vacuum suction caps.
Vacuum Robot
The vacuum suction is designed with automatic pressure control doable routes to avoid system failure.
Ideal for loading & unloading transporting,rotating and installation.
Easy for operation,with the following functions:
Self-propelled drive.
Electric lift up to 1.5M
Higher lift cap. is available upon request.
Electric side shift 100mm both right & left.

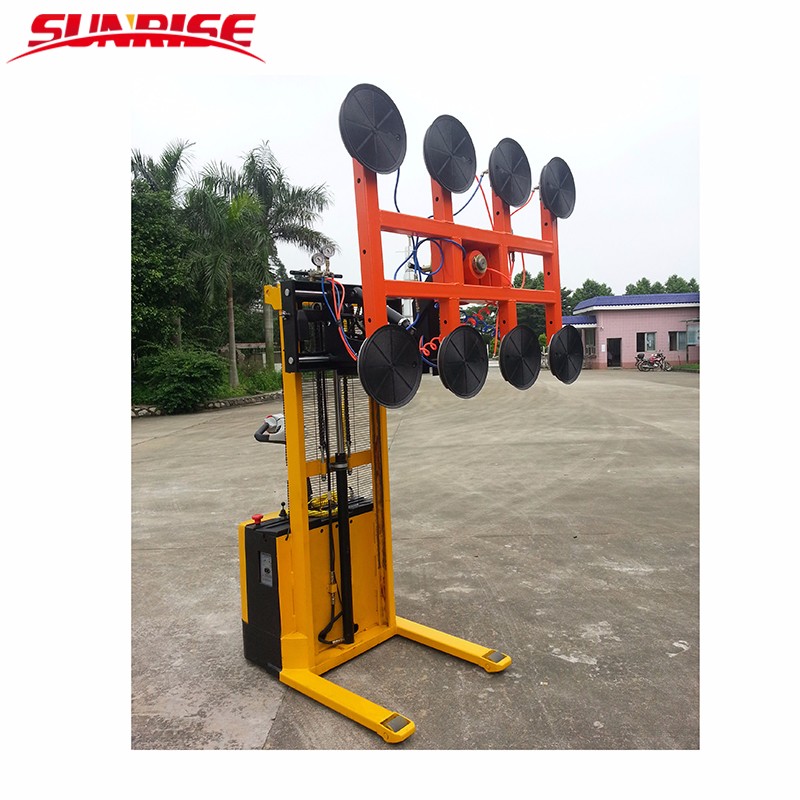

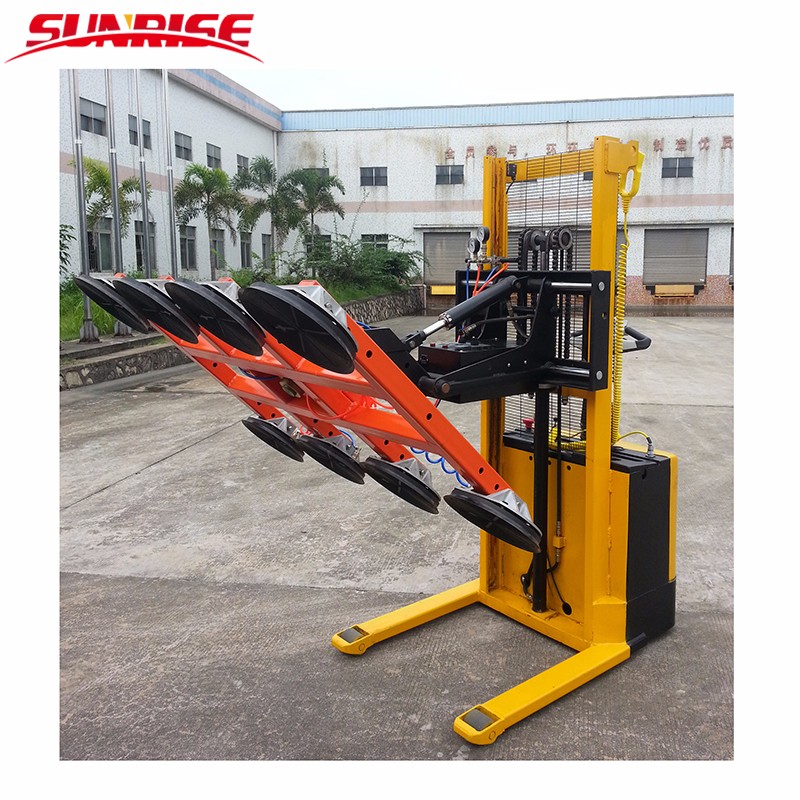

Electric tilting forwards & backwards from vertical to horizontal or reverse.

Manaul rotating.

Capacity: 400kgs, 500kgs, 800kgs

1. Intergrated power failure monitor

2. Can choose various suction pads configuration

3. Especially suitable for aluminum, stainless plank, cutting machine, steel plate shearer up-down material etc.

4. Acoustic warning

5. Intergrated safety tank/vacuum tank

6. Imported Pump& Valve

7. SafetyTank& pressure switch warning

8. Adjustable suction cups, can be turned off individually

Model	WSG-40/15	WSG-60/15	WSG-80/15
Capacity	400(Kgs)	500(Kgs)	800(Kgs)
Lifting height	1500(mm)	1500(mm)	1500(mm)
No. of Suction cup	4	6	8
Side shifter of distance	100/100mm(each100mm)
Up/down rotate	90°(From vertical to Horizontal)
Flat surface Rotate	360°
Cylinder	1/1	1/1	1/1
Height of mast	2080(mm)	2080(mm)	2080(mm)
Width of suck frame	930 * 1500(mm)	930 * 1500(mm)	930 * 1500(mm)
Length	1550(mm)	-	-
Hydraulic motor	DC24V/1600W	DC24V/1600W	DC24V/2000W
Driving motor	DC24V/500W	DC24V/700W	DC24V/1000W
Battery	2X12V/55Ah	2X12V/70Ah	2X12V/100Ah
Charger	DC24V/10Ah		DC24V/15Ah
Speed controller	stepless speed controller / Electric controller
Walking speed	0~6.5Km/h
Self weight (Kg)	--	--	--
